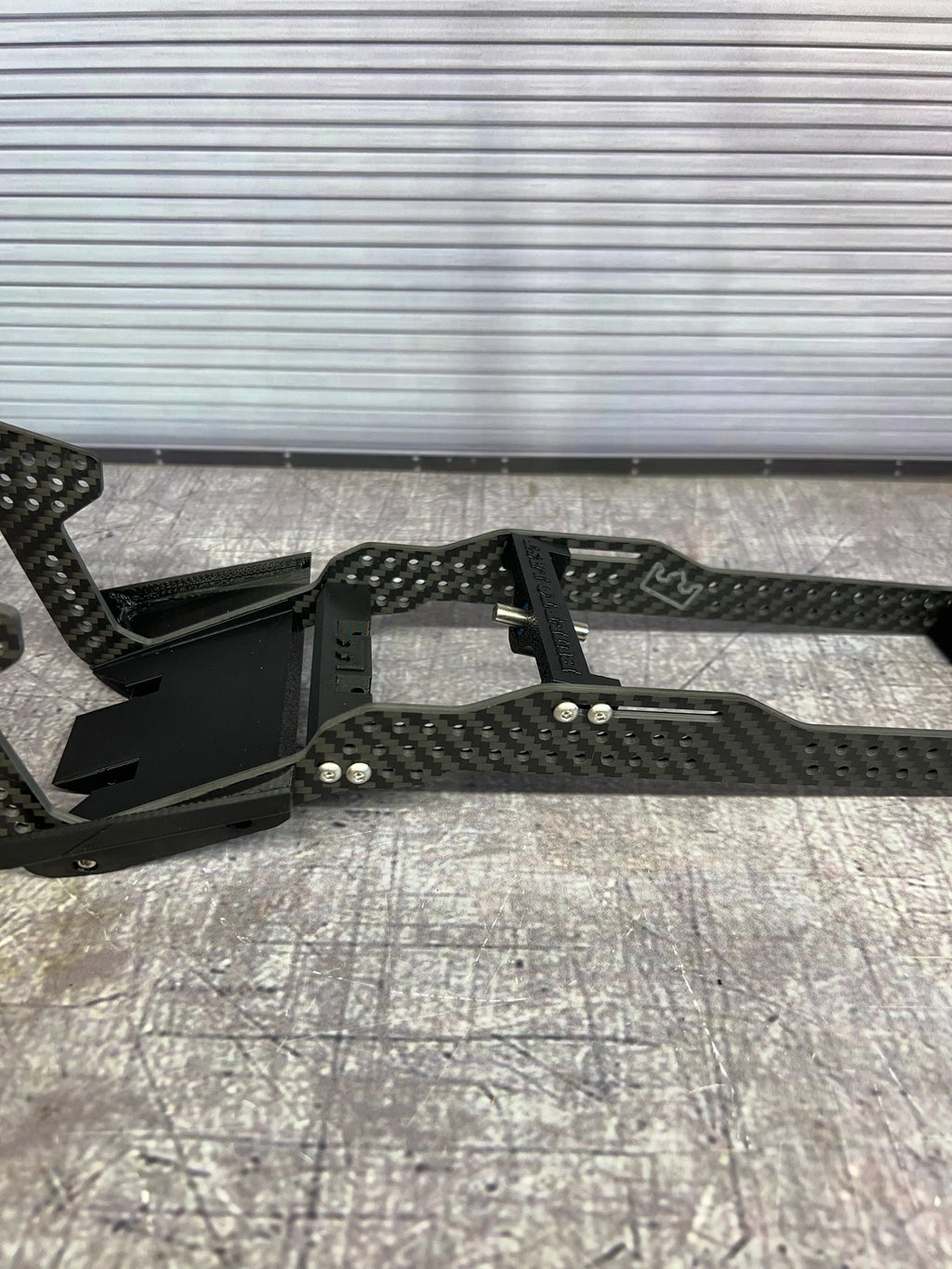

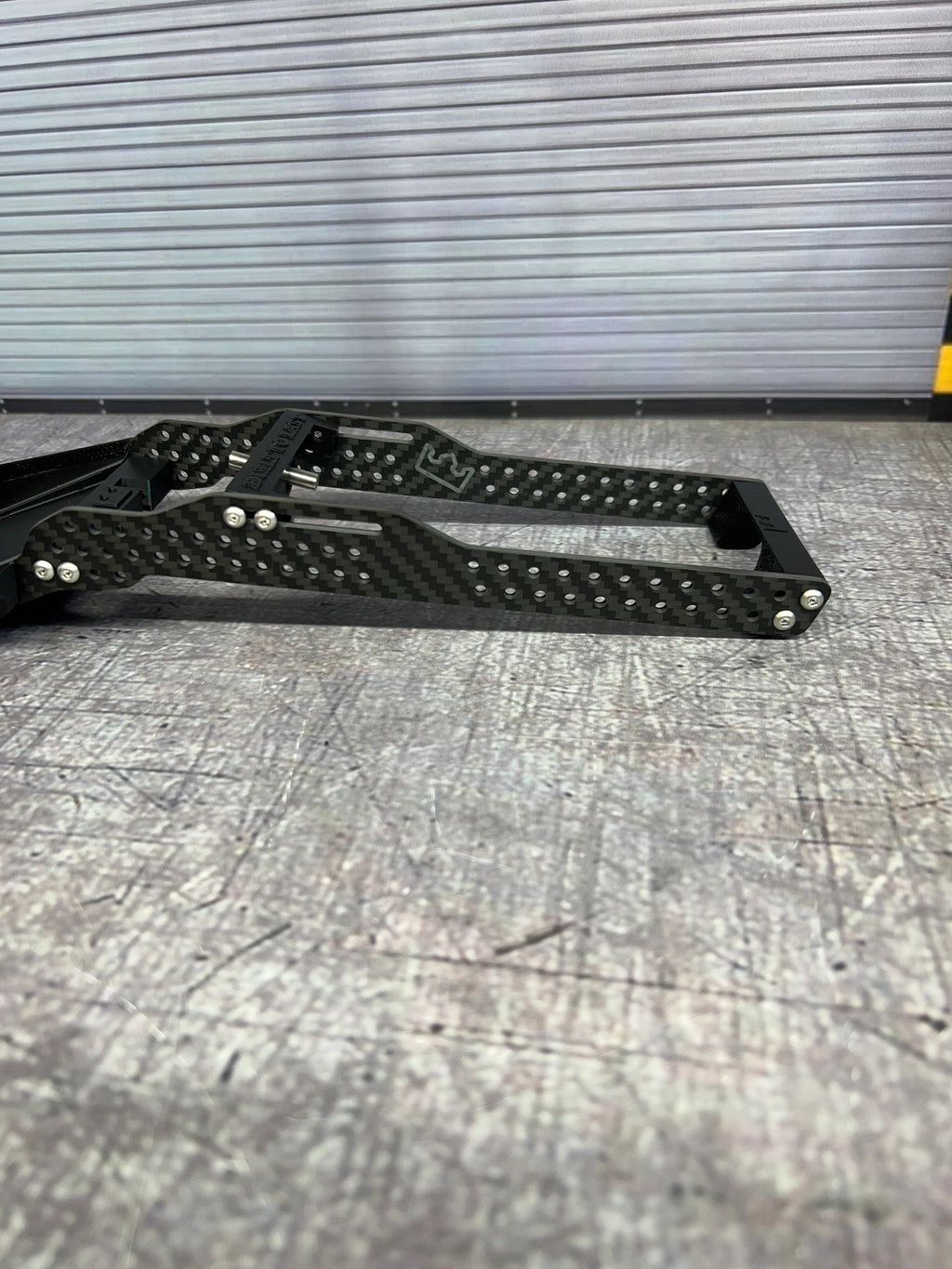

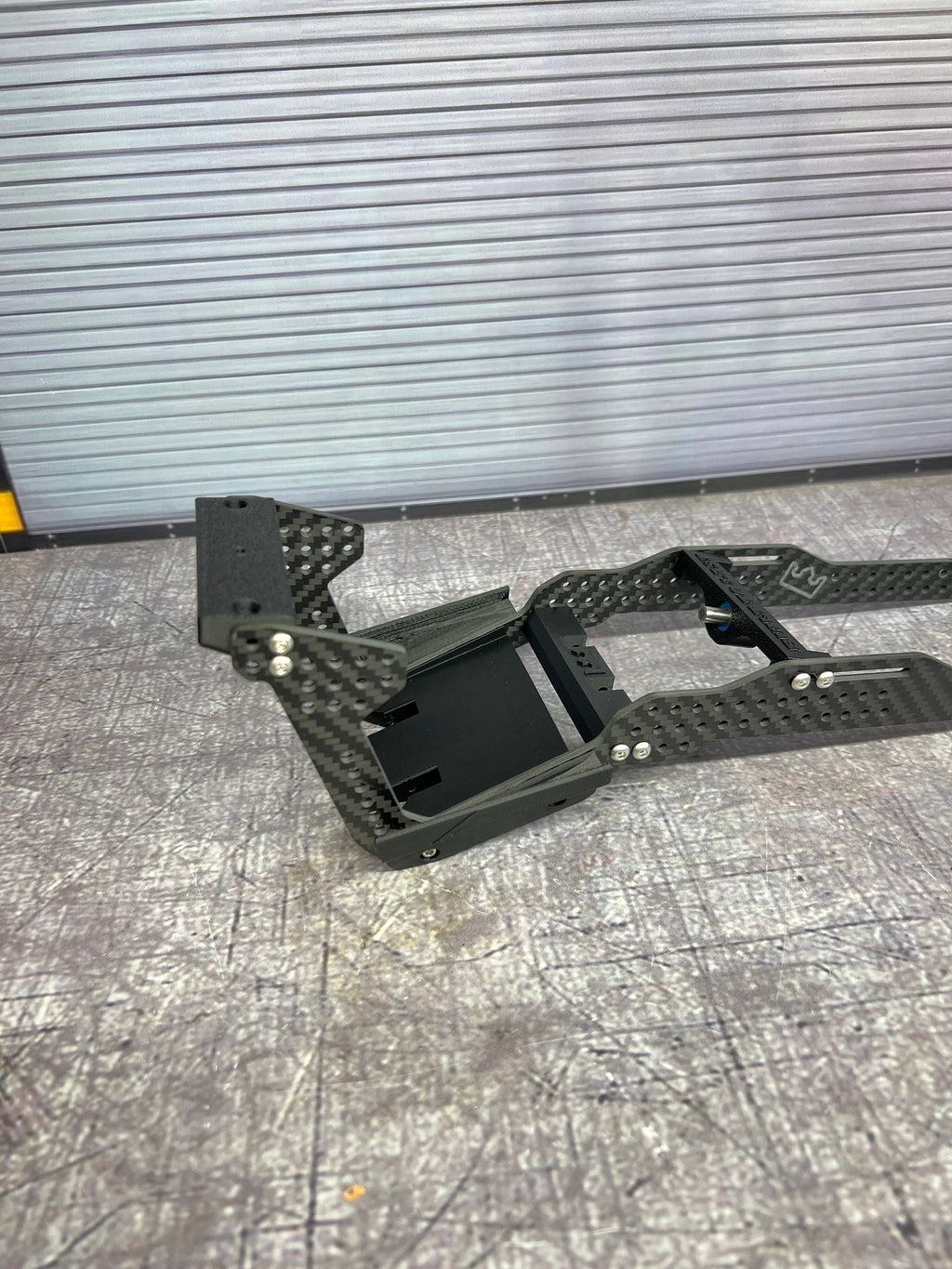

EMPIRE XTREME (CHOPPED)

XTREME LINKS SOLD SEPARATE (ADD TO CART BEFORE CHECKOUT)

FOR ADDITIONAL PARTS PLEASE HEAD OVER TO EMPIRE XTREME ACCESSORIES LISTING.

COMPLETE KIT INCLUDES:

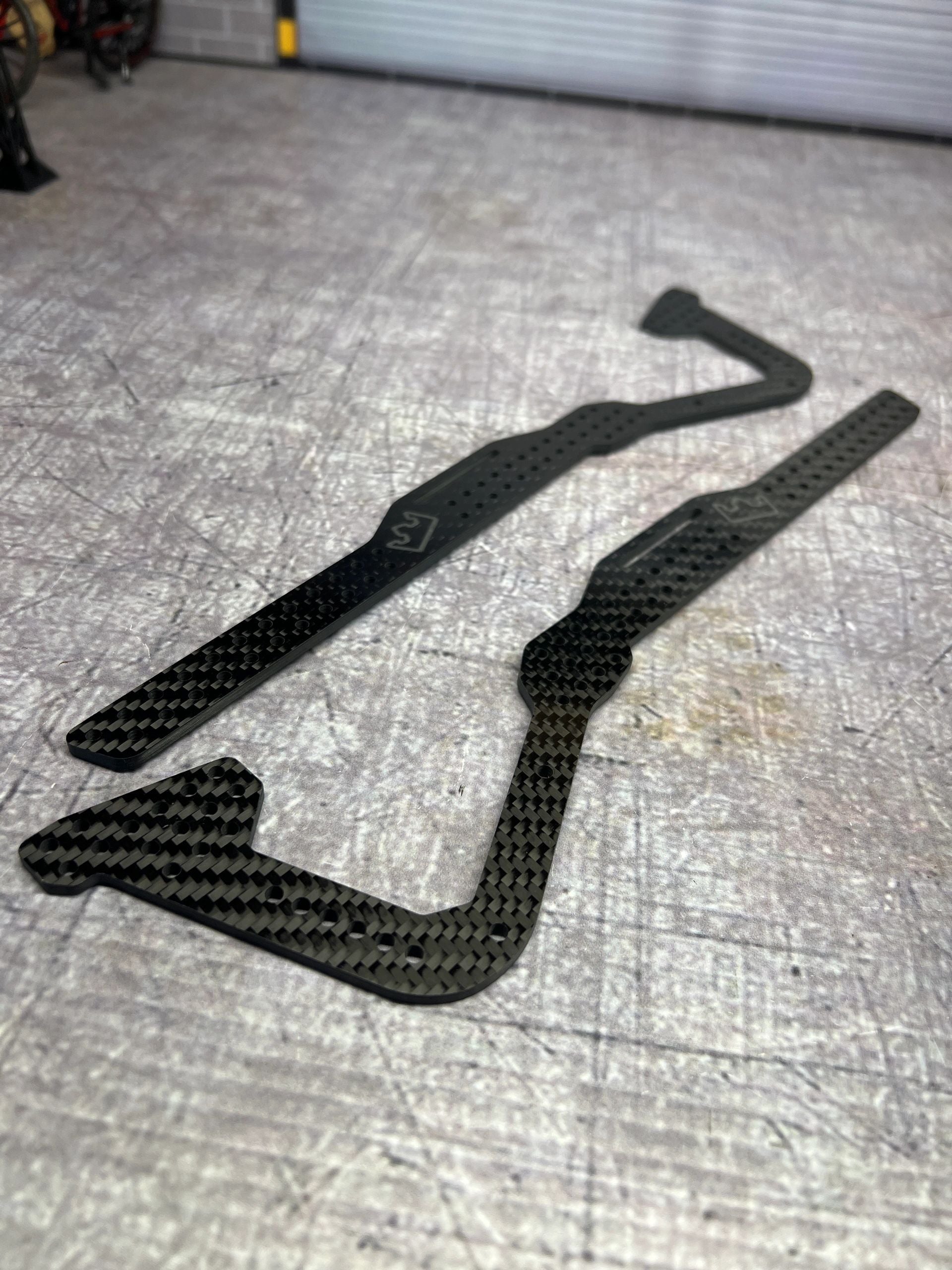

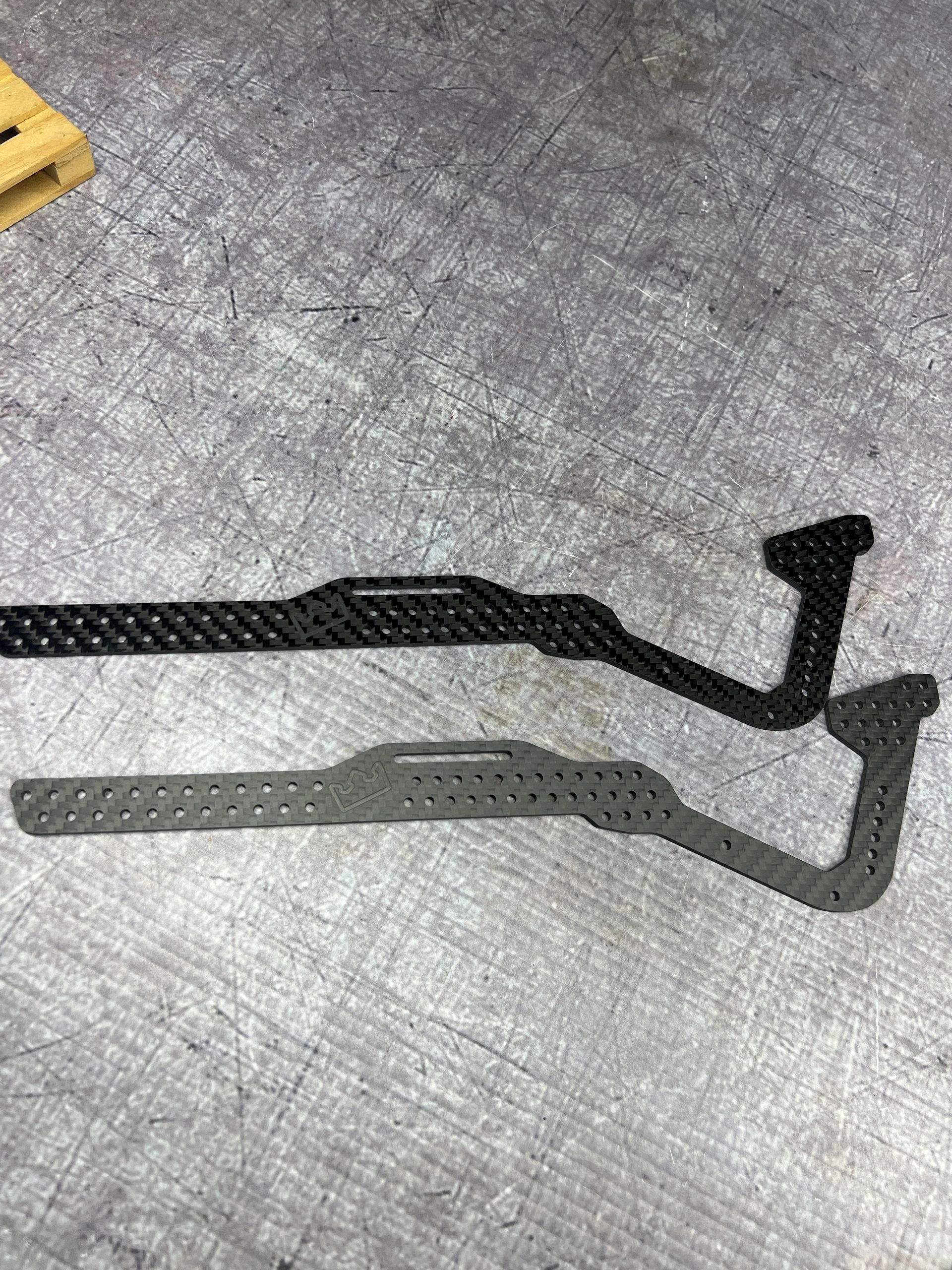

• XTREME CHOPPED RAILS

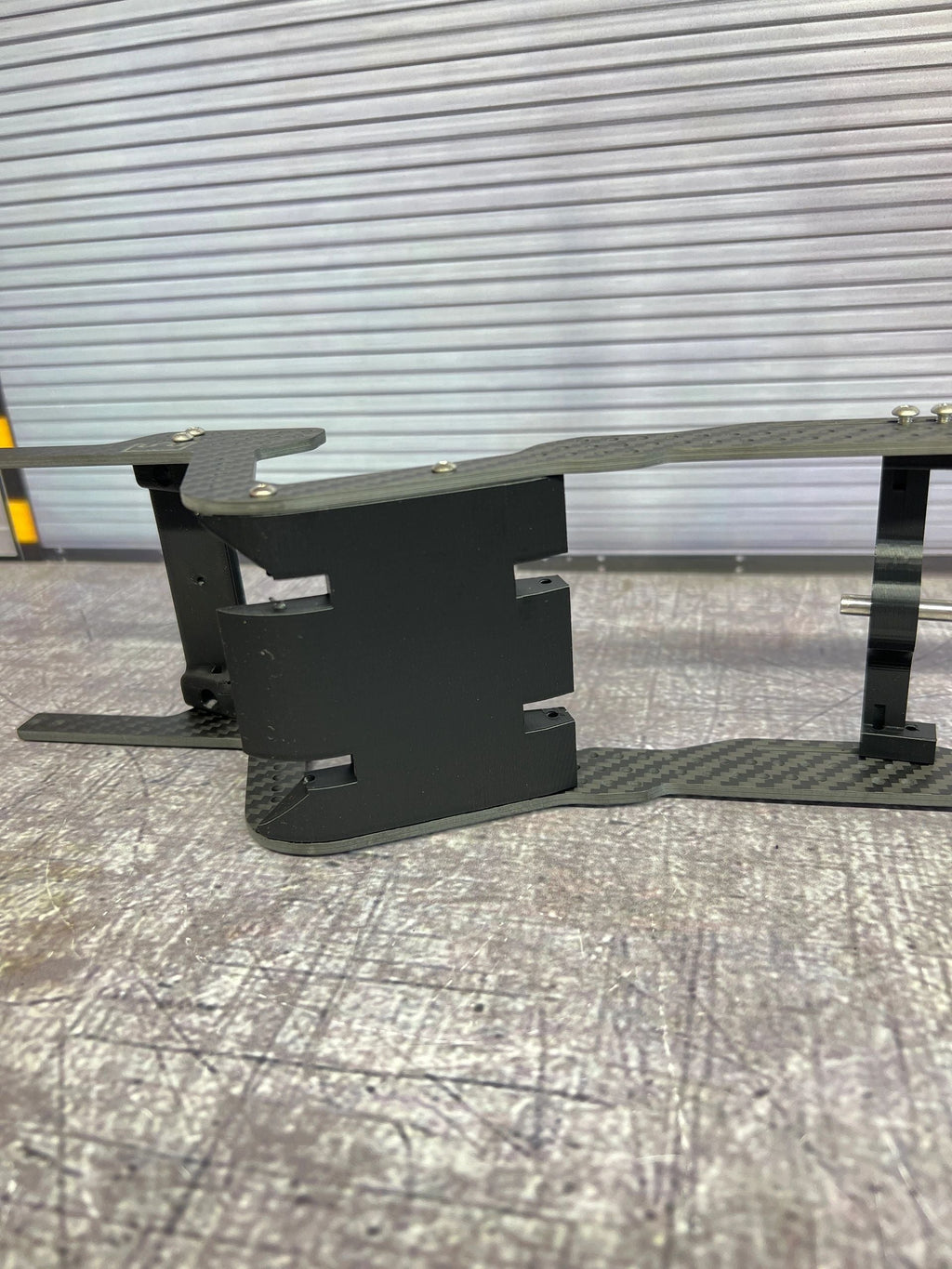

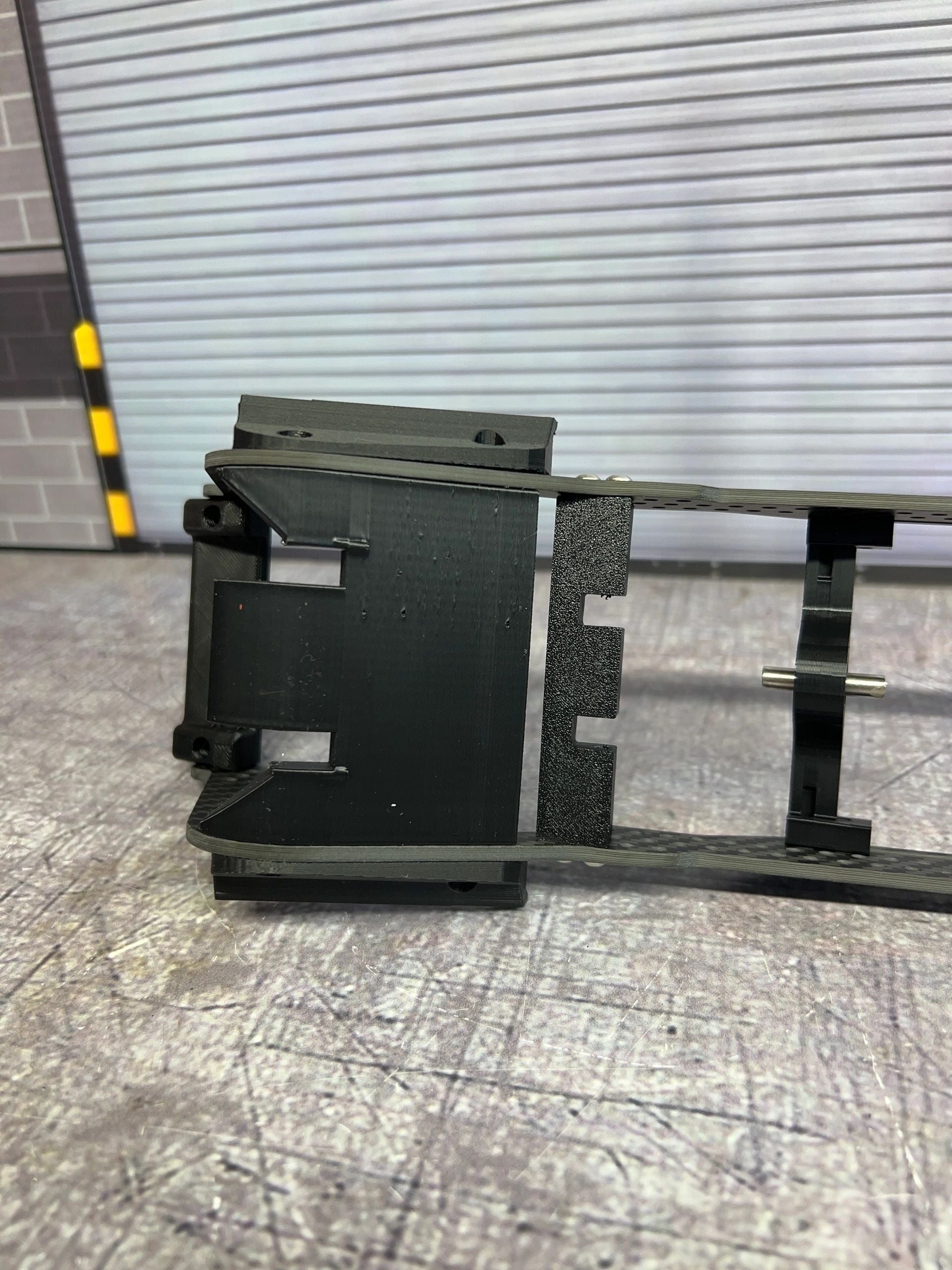

• 78mm WIDE 2 PIECE SKID
• KICK OFF SLIDERS
• 78mm CARRIER BEARING
• 78mm FRONT BODY MOUNT
• 78mm REAR BRACE

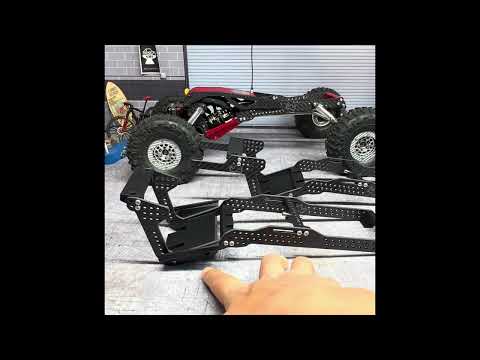

PLEASE WATCH VIDEO & READ FULL DESCRIPTION

• IF YOU WOULD LIKE A HOLE PATTERN ON YOUR SKID PLATE PLEASE NOTE IT AT CHECK OUT (AVAILABLE TRANSMISSION HOLE PATTERNS ARE PORTAL TRANS, NOD TRANS, 2LOW TRANS, REEFS TRANS)

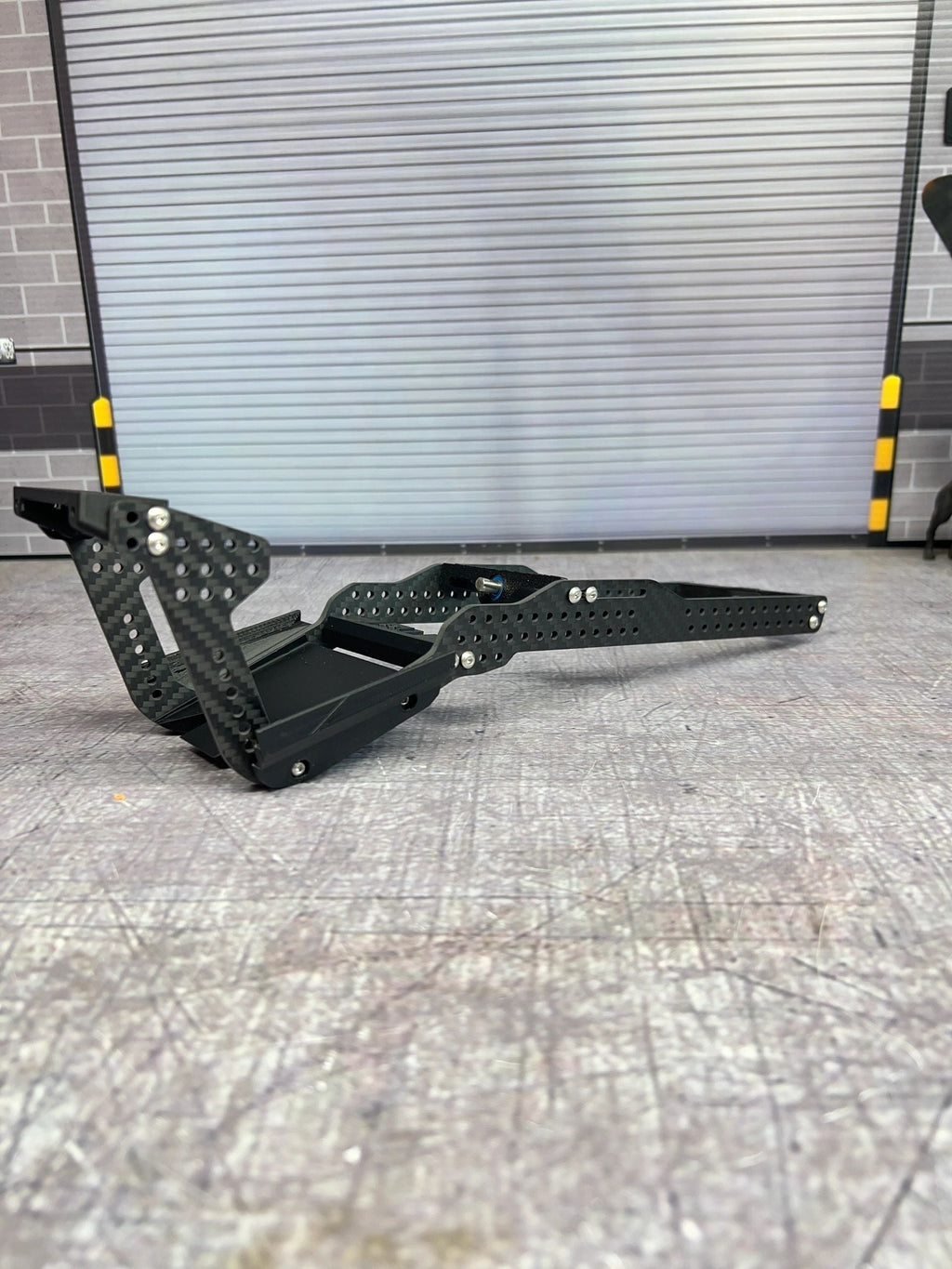

• CHASSIS HAS A 27 DEGREE BREAK OVER SKID FOR BETTER CLEARANCE
• MULTIPLE REAR MOUNTING OPTIONS TO EXTEND YOUR WHEELBASE FROM 13 TO 14"+ WITH OUR 2 PIECE SKID PLATE
• MULTIPLE FRONT AND REAR SHOCK MOUNTING POSITIONS FOR SHOCK TUNING
• 10 DEGREE BEARING CARRIER TO GET A BETTER DRIVE SHAFT ANGLE IN THE REAR

• THIS IS NOT A SWAP OVER CHASSIS FROM AN EXISTING RTR. THIS IS SOMETHING TO HAVE FUN AND BUILD WITH PARTS OF YOUR PERSONAL PREFERENCE. WE HOPE YOU ENJOY BUILDING THESE CHASSIS AS MUCH AS WE HAVE

• OUR 2 PIECE SKID PLATE HAS THE FONT LINK MOUNTS AND SEPARATE LINK BRACE TO EXTEND YOUR WHEELBASE FROM THE CHASSIS.
• BOTH SKIDS HAVE A 20mm SPACING SO YOUR LINKS WOULD SIT AT 27mm APART CENTER TO CENTER OF THE HOLLOW BALL

EMPIRE XTREME LINK LENGTHS (NO ROD ENDS)

• FRONT UPPERS 43.5mm
• FRONT LOWERS 53mm
• REAR UPPERS 158.5mm
• REAR LOWERS 172mm WITH A 30 DEGREE BEND
• LINK SET SOLD WITHOUT ROD ENDS OR PIVOT BALLS

NOTE:

• 78mm WIDE IS OUR MOST POPULAR SIZE SKID
• IF YOU WOULD LIKE THE KIT TO BE 70mm WIDE PLEASE STATE IT ON THE NOTES AT CHECK OUT.
• A SMALL TRANSMISSION IS RECOMMENDED
