IERC EMPIRE LINK MOUNT BRACE

PLEASE READ FULL DESCRIPTION

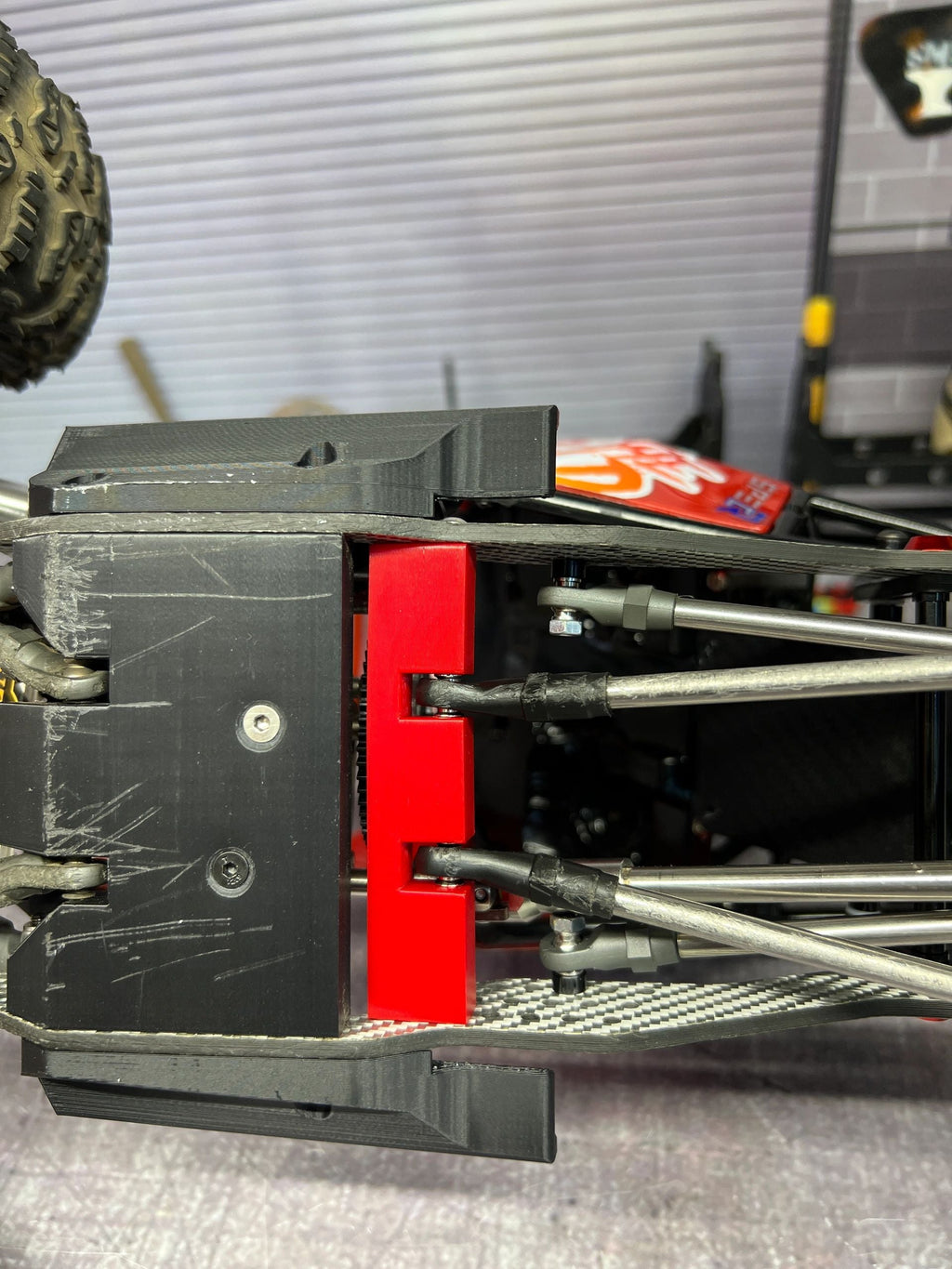

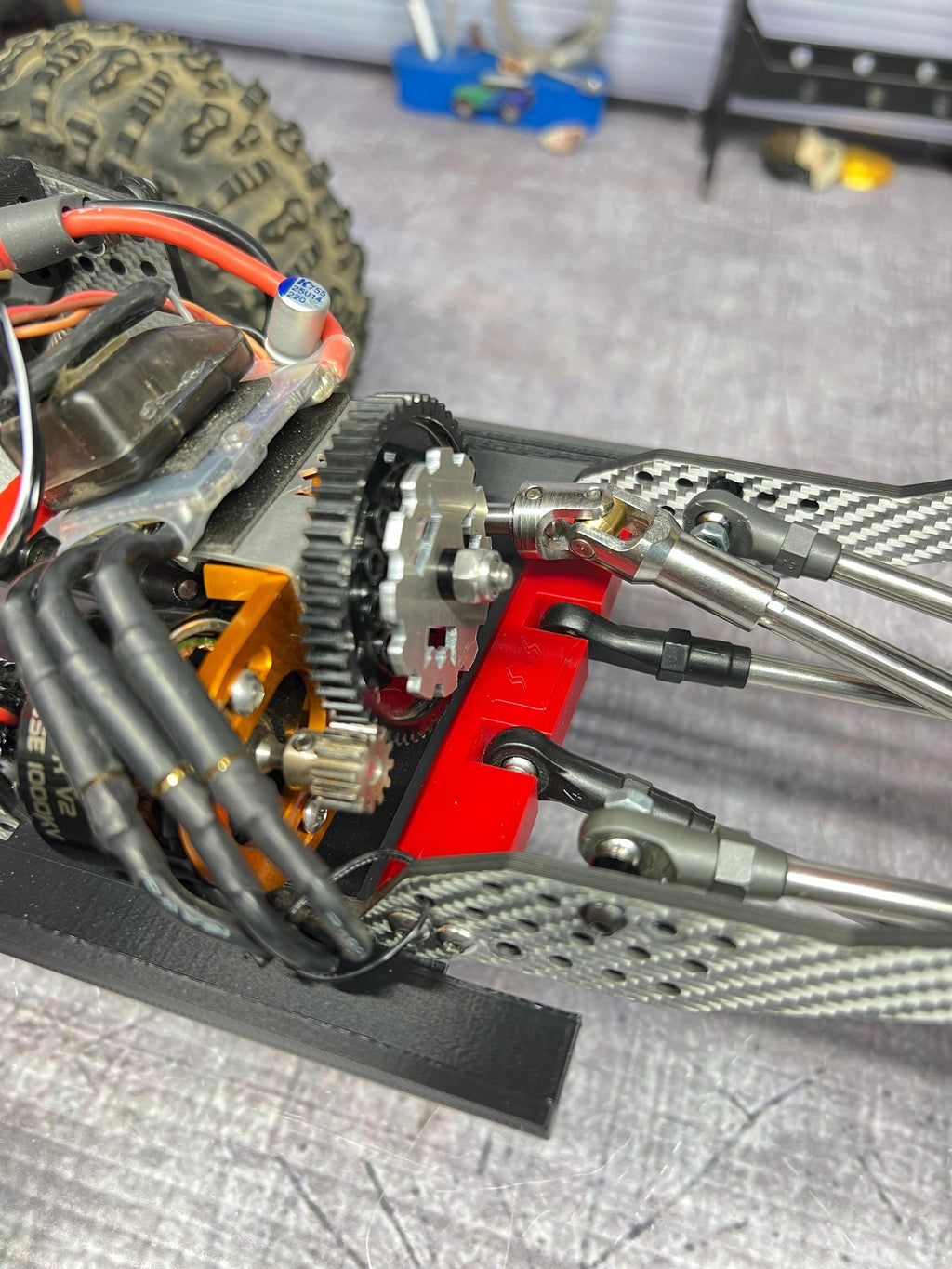

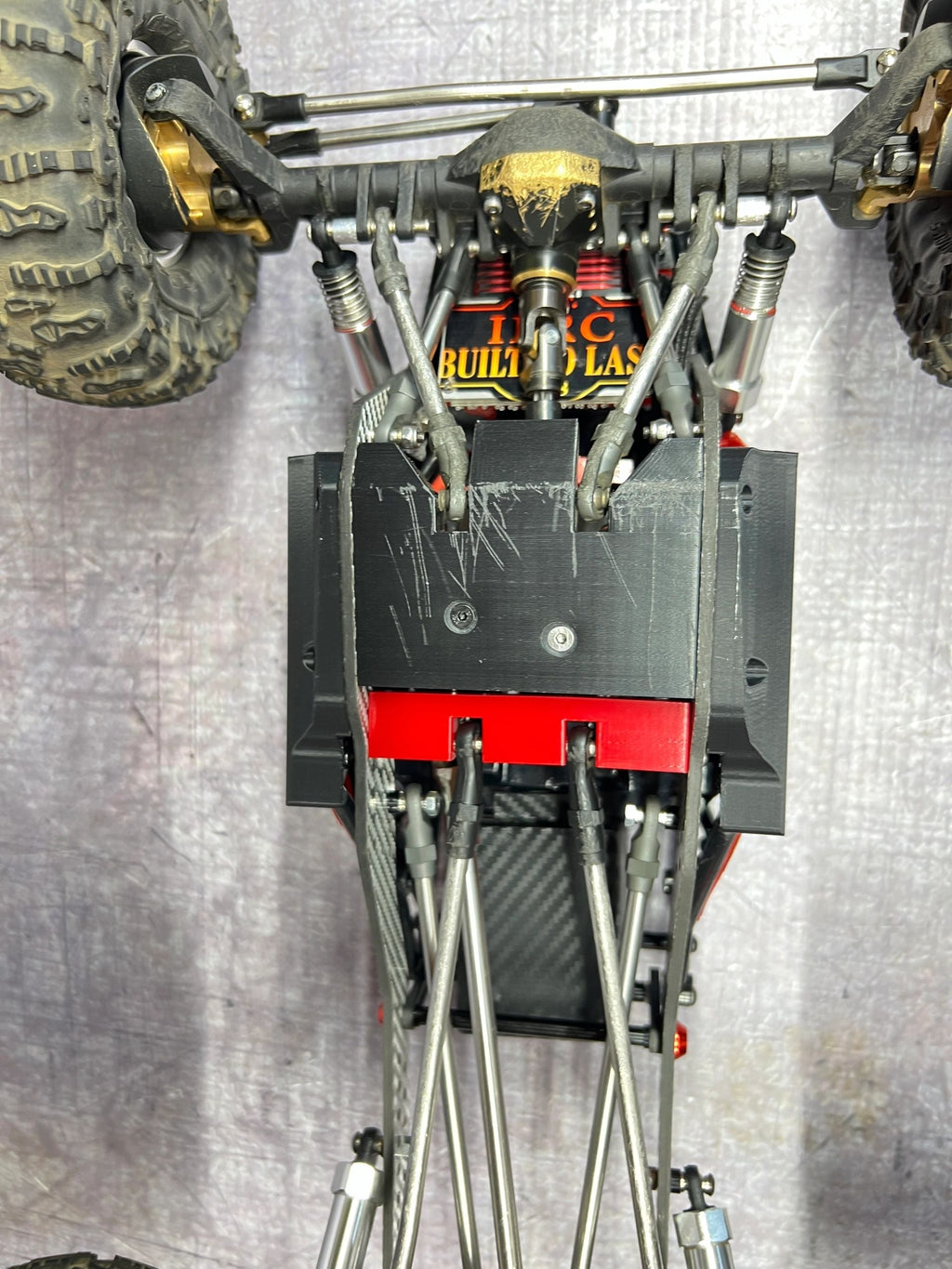

• THESE 3D PRINTED LINK BRACES WILL HELP STIFFEN UP THE FRAME WHEN RUNNING THE UPPER LINKS MOUNTED DIRECTLY TO THE CHASSIS
• THE HOLLOW BALL OPENING IS MADE FOR A 7mm WIDE BALL (TRAXXAS ROD END HOLLOW BALL)

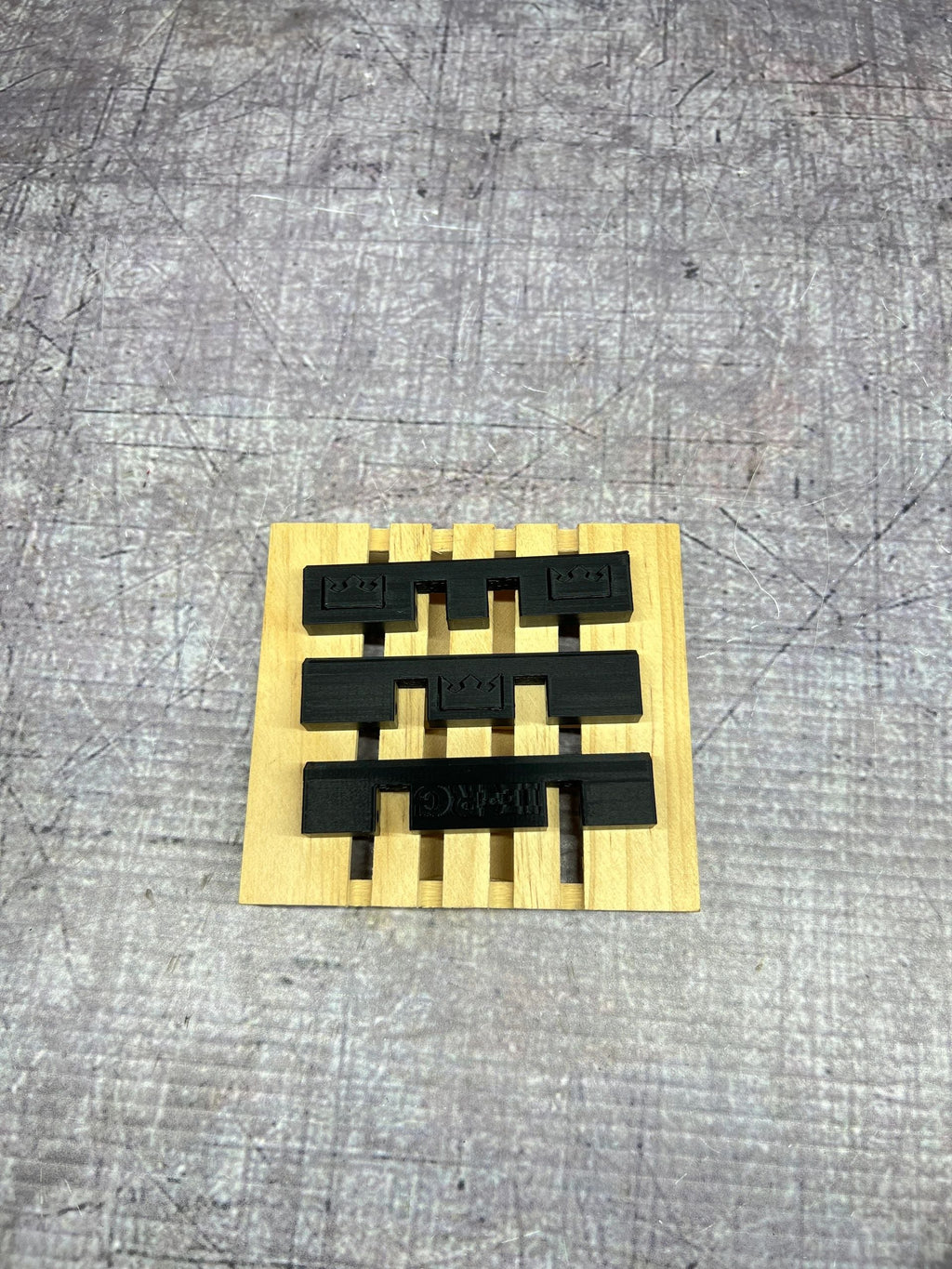

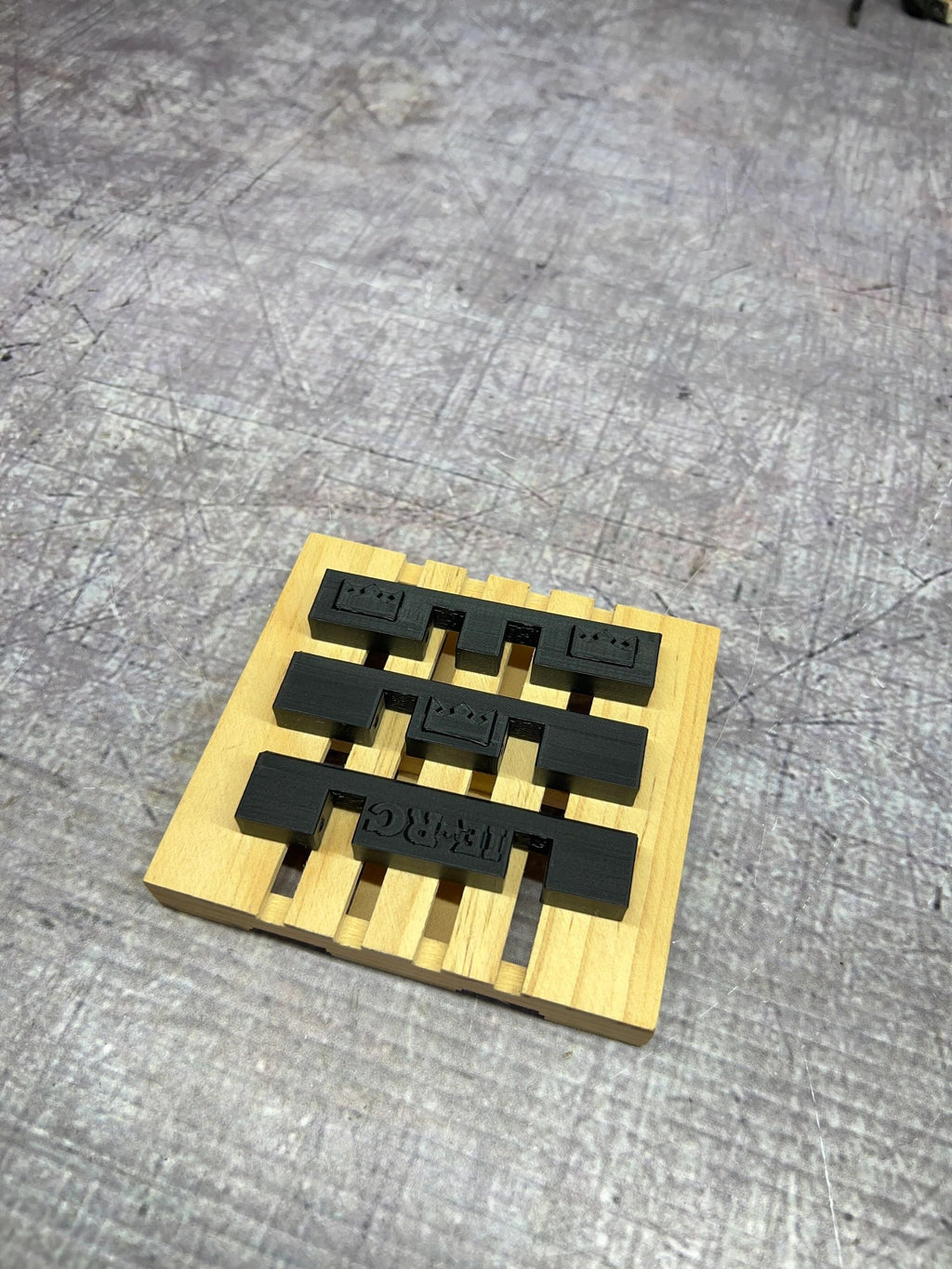

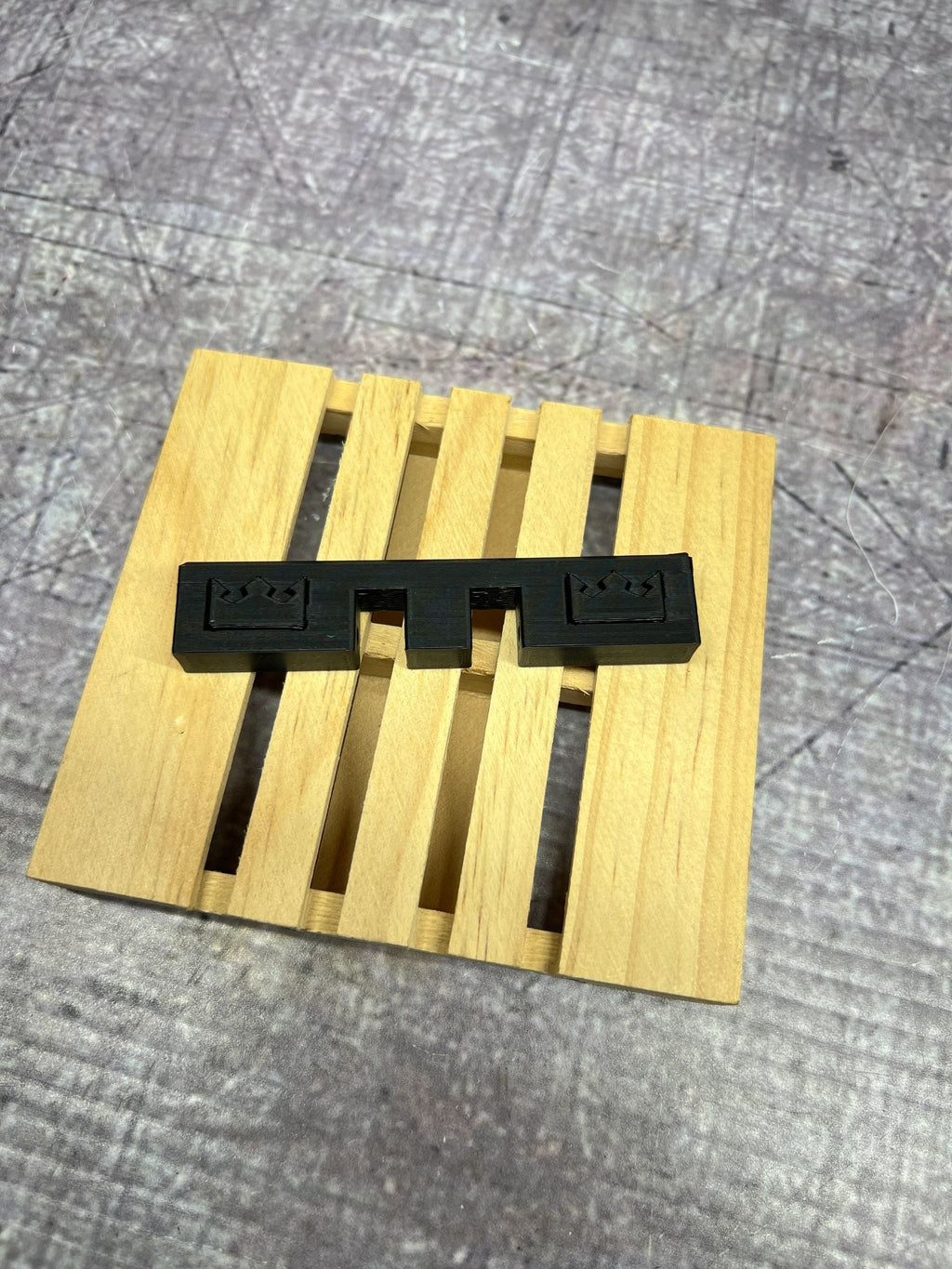

• THE BLOCK AT THE CENTER OF THE BRACE IS 10mm, 20mm & 30mm WIDE
• YOUR LINKS WOULD SIT AT 17mm, 27mm OR 37mm APART CENTER TO CENTER OF THE HOLLOW BALL BRACE WIDTHS:
• IF YOU RUN A OUR STANDARD 78mm SKID PLATE YOU WILL NEED THE 76mm WIDE BRACE
• THIS IS DUE TO THE 67mm (PROVIDED WITH OUR CHASSIS) OR 65mm STAND OFFS RAN TOWARDS THE BACK OF EXISTING CHASSIS
• IF YOU RUN A 70mm SKID PLATE, YOU WILL NEED A 70mm WIDE BRACE
• USUALLY THE REAR STAND OFFS RAN WITH THIS SKID PLATE WIDTH WOULD BE THE SAME WIDTH OR 65mm AND SHOULDN'T AFFECT THE MOUNTING BRACE WIDTH
• MOUNTING HOLE SPACING IS .25" (6.35mm) CENTER TO CENTER
• DO NOT OVERTIGHTEN THE SCREWS
