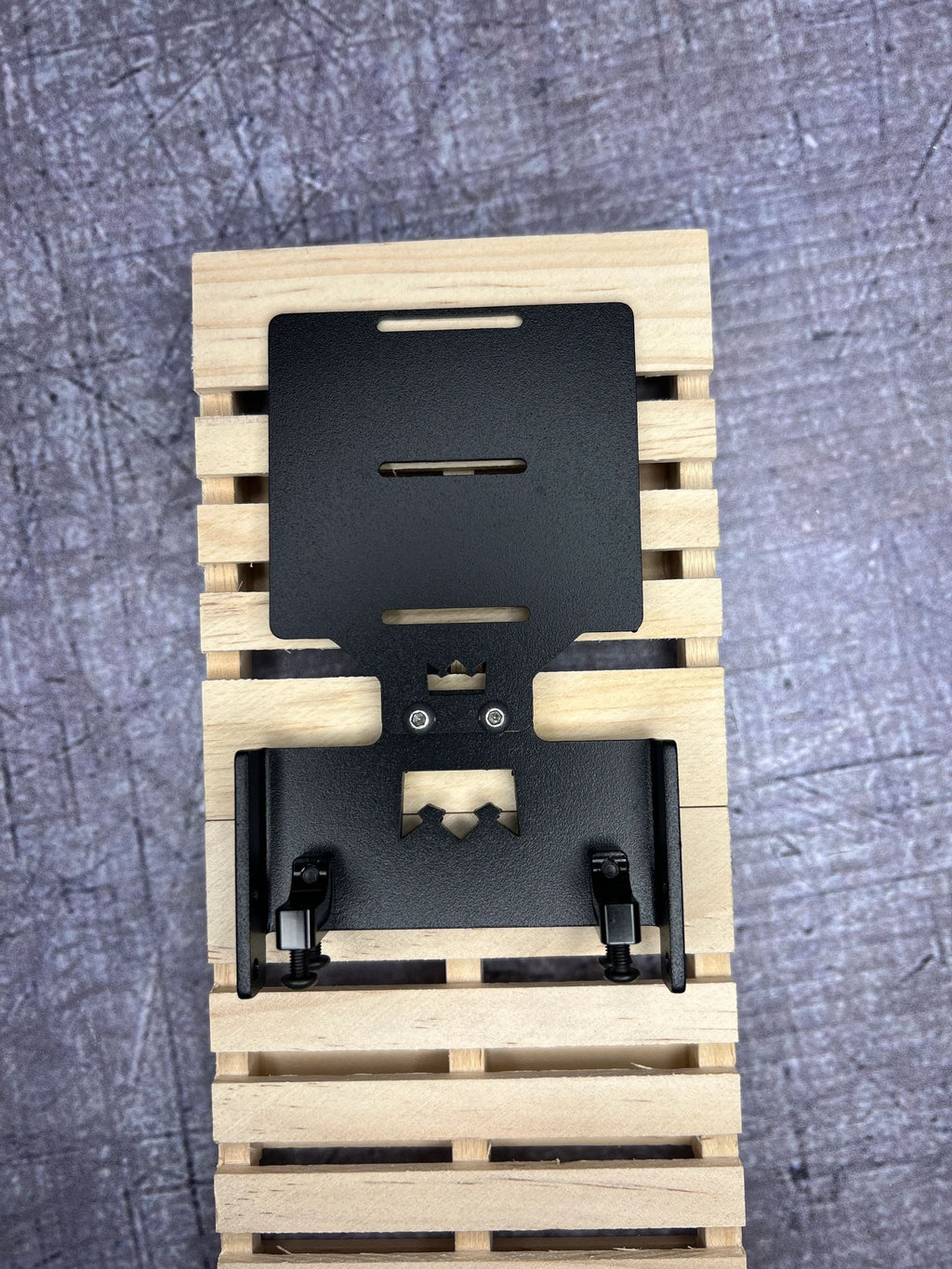

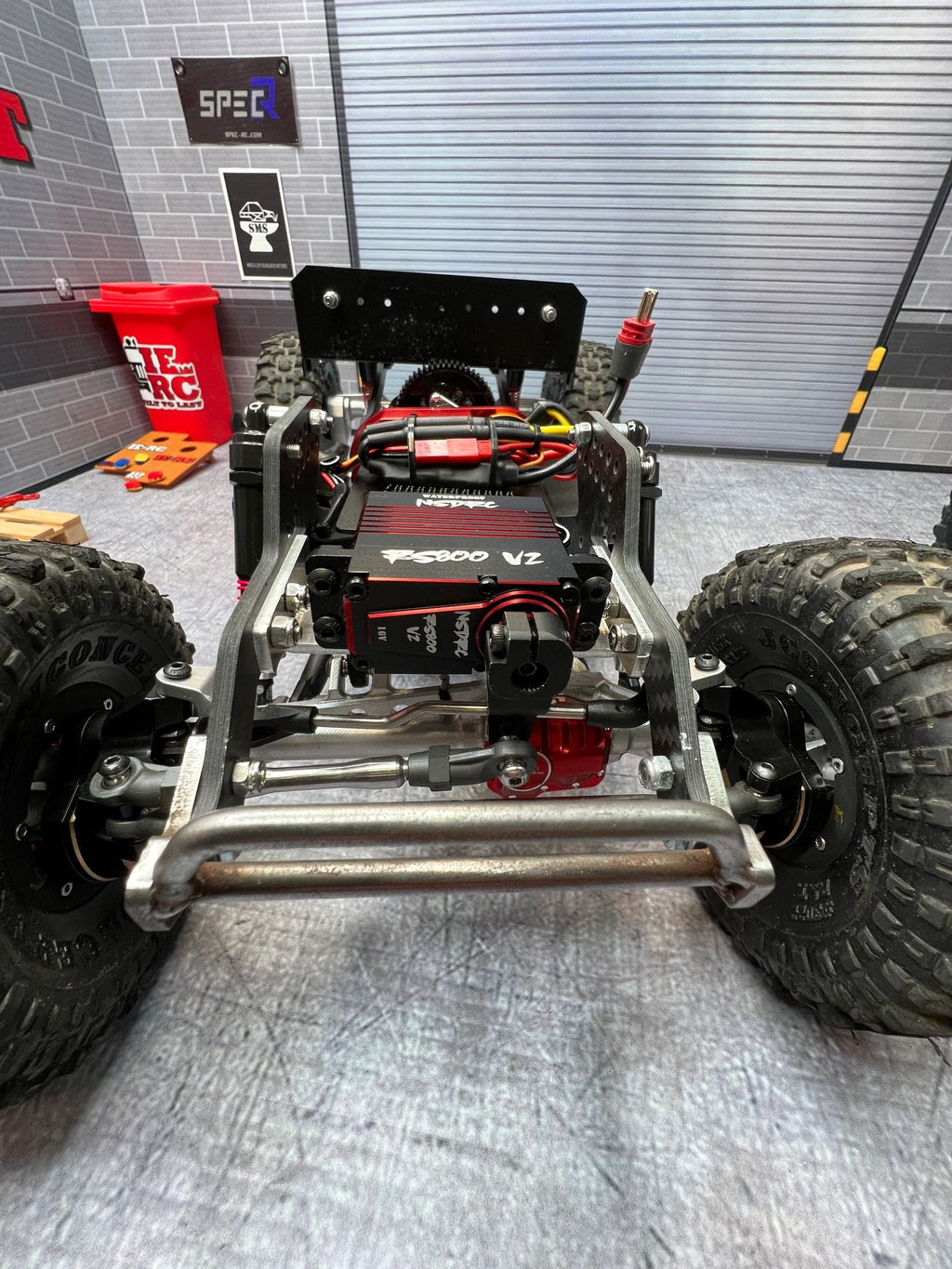

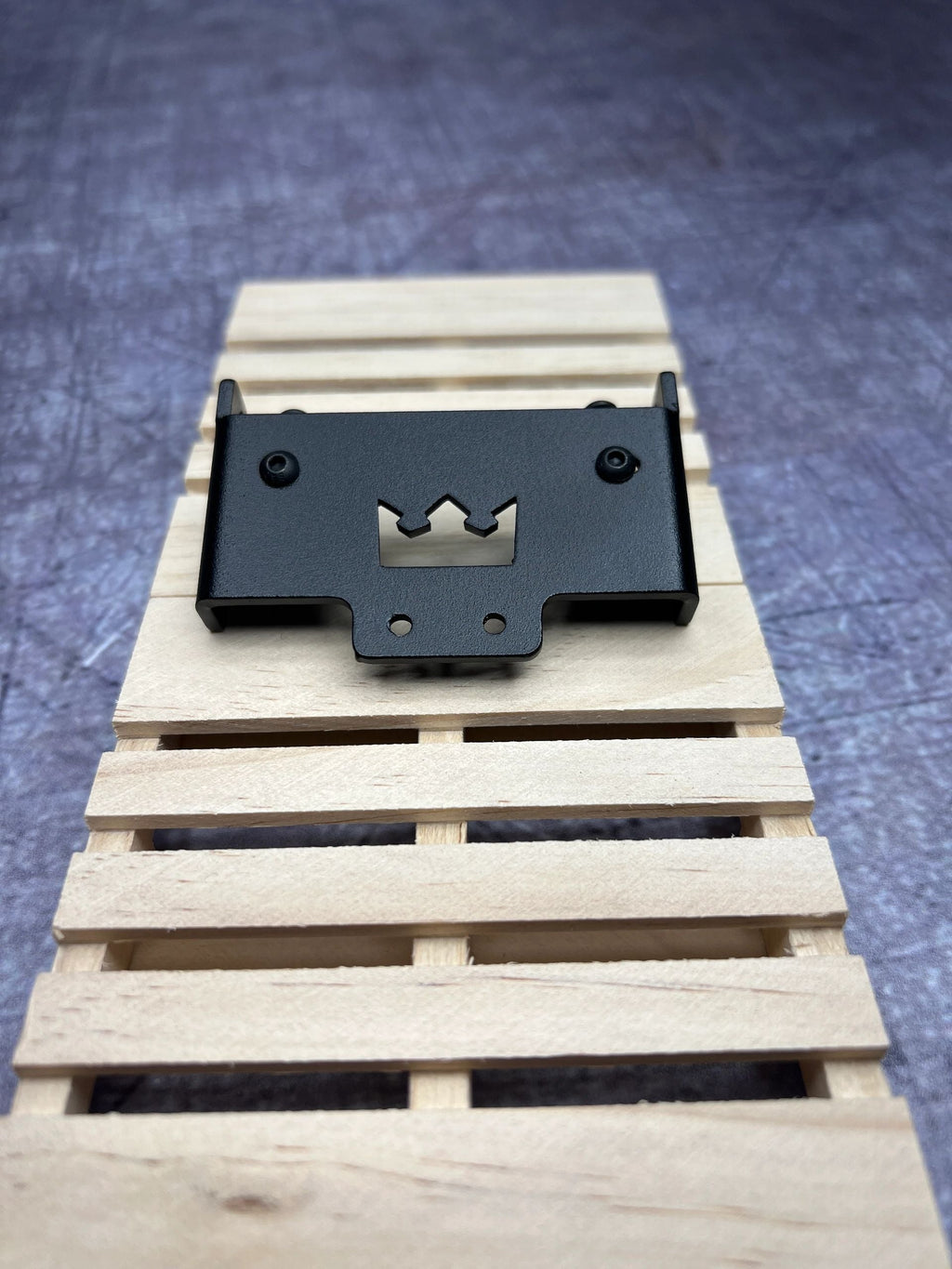

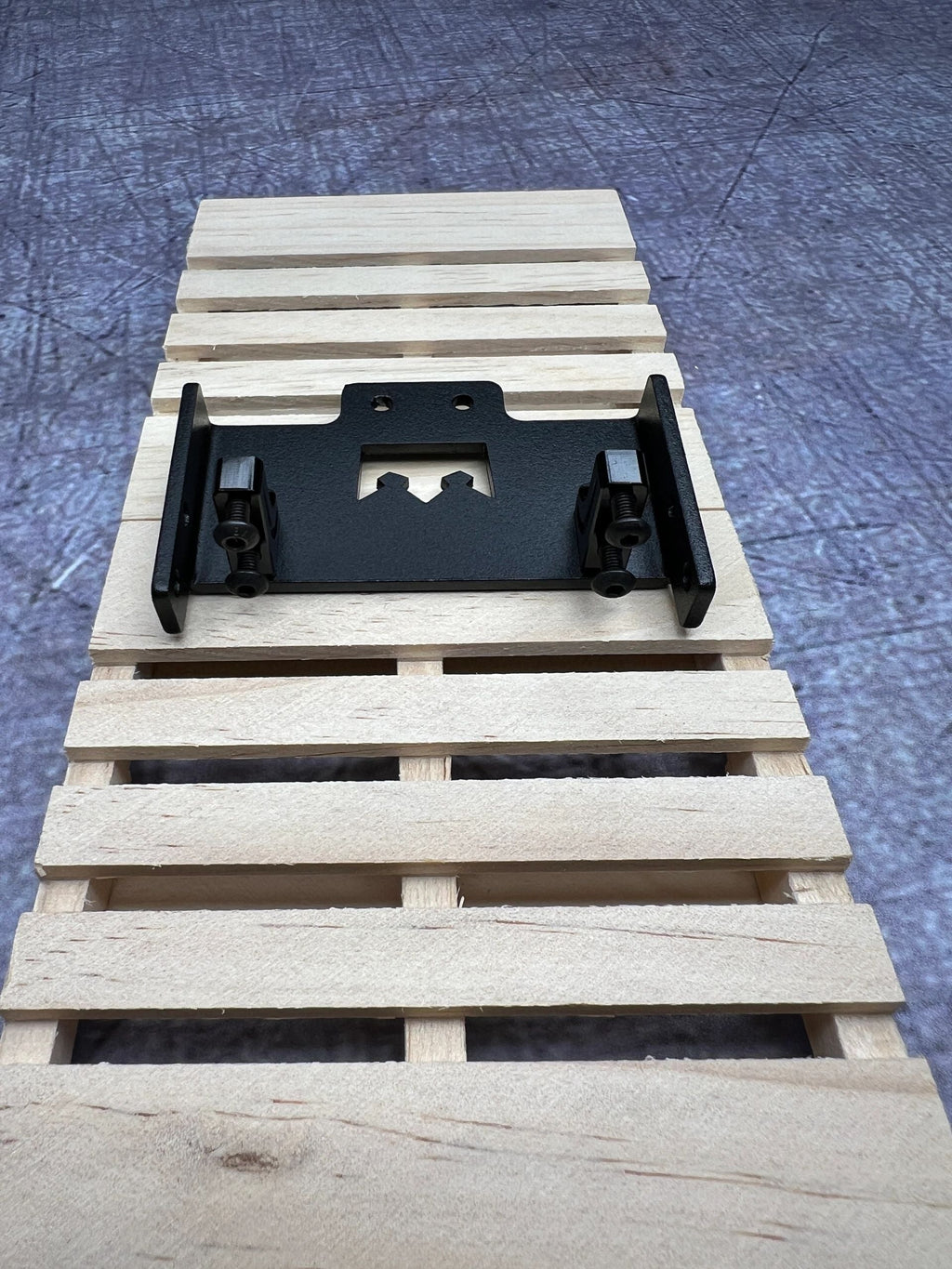

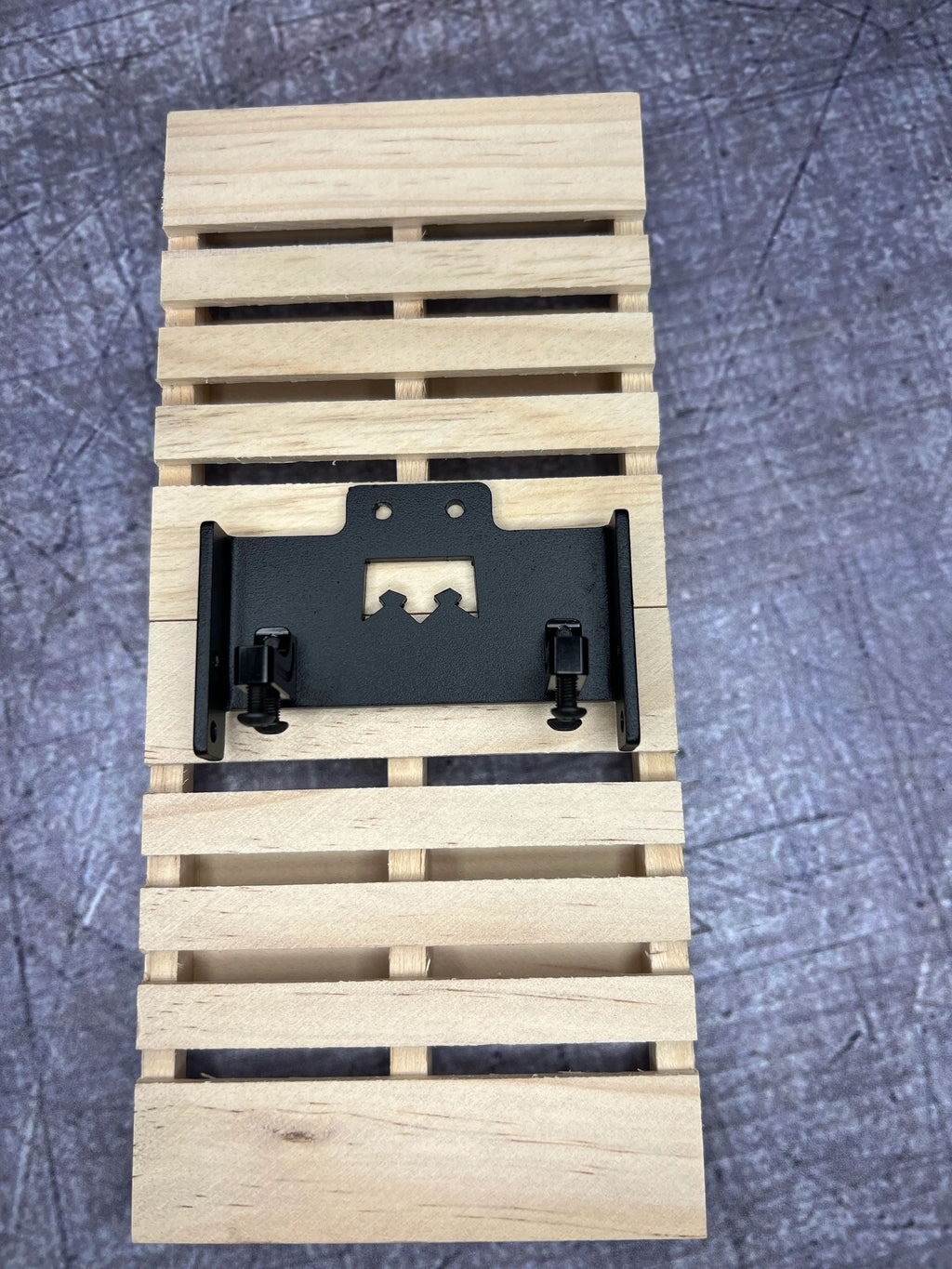

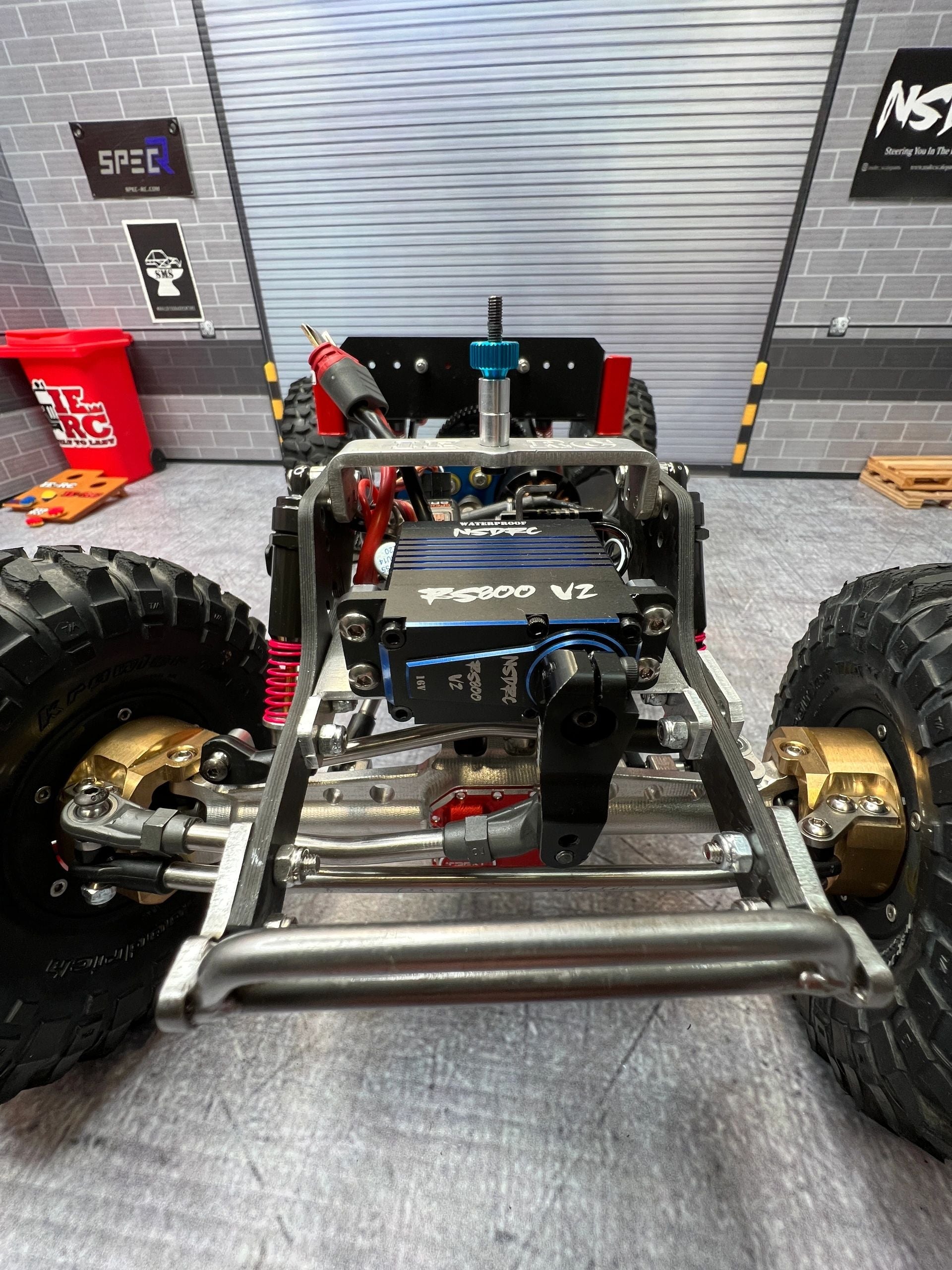

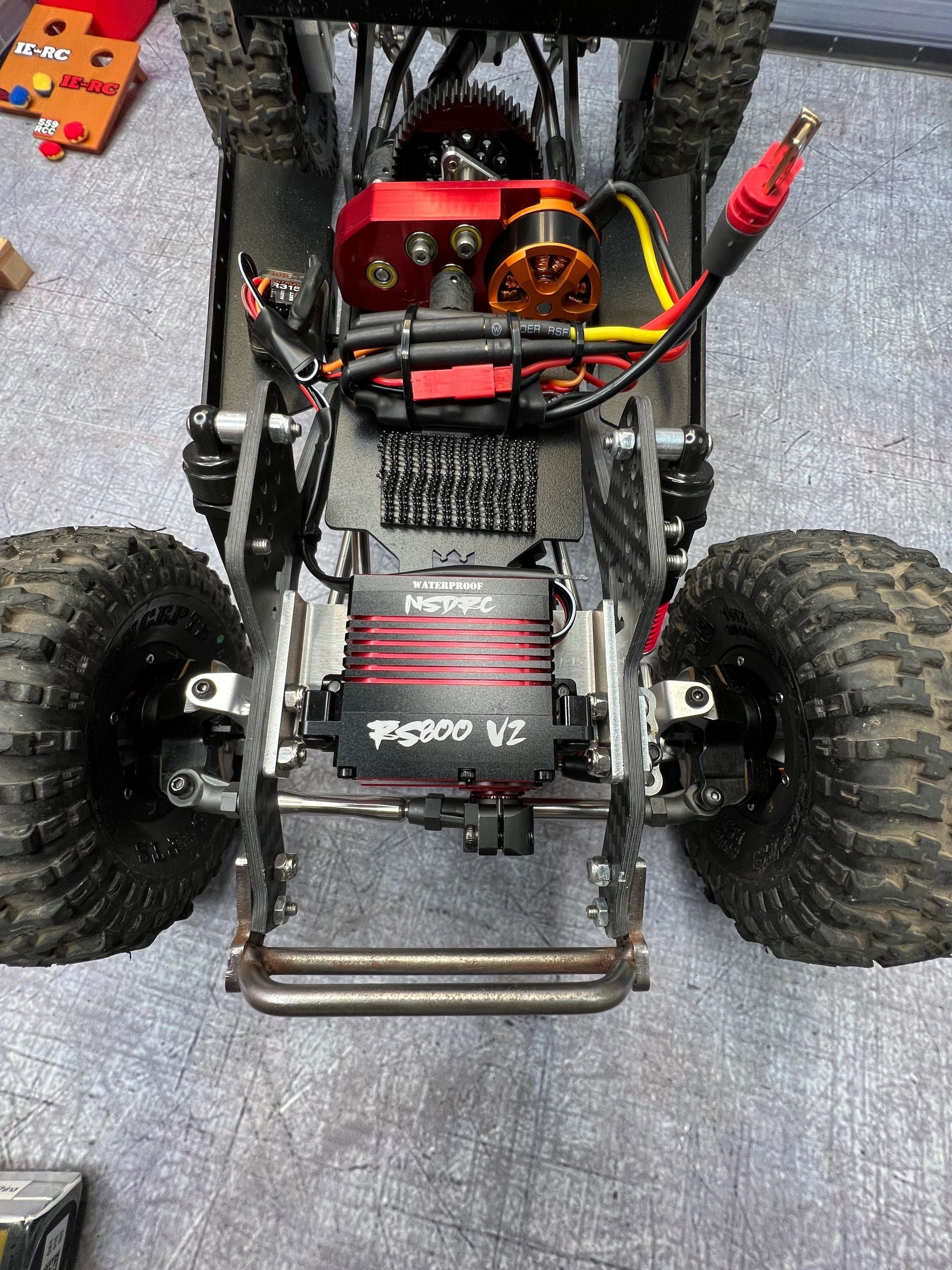

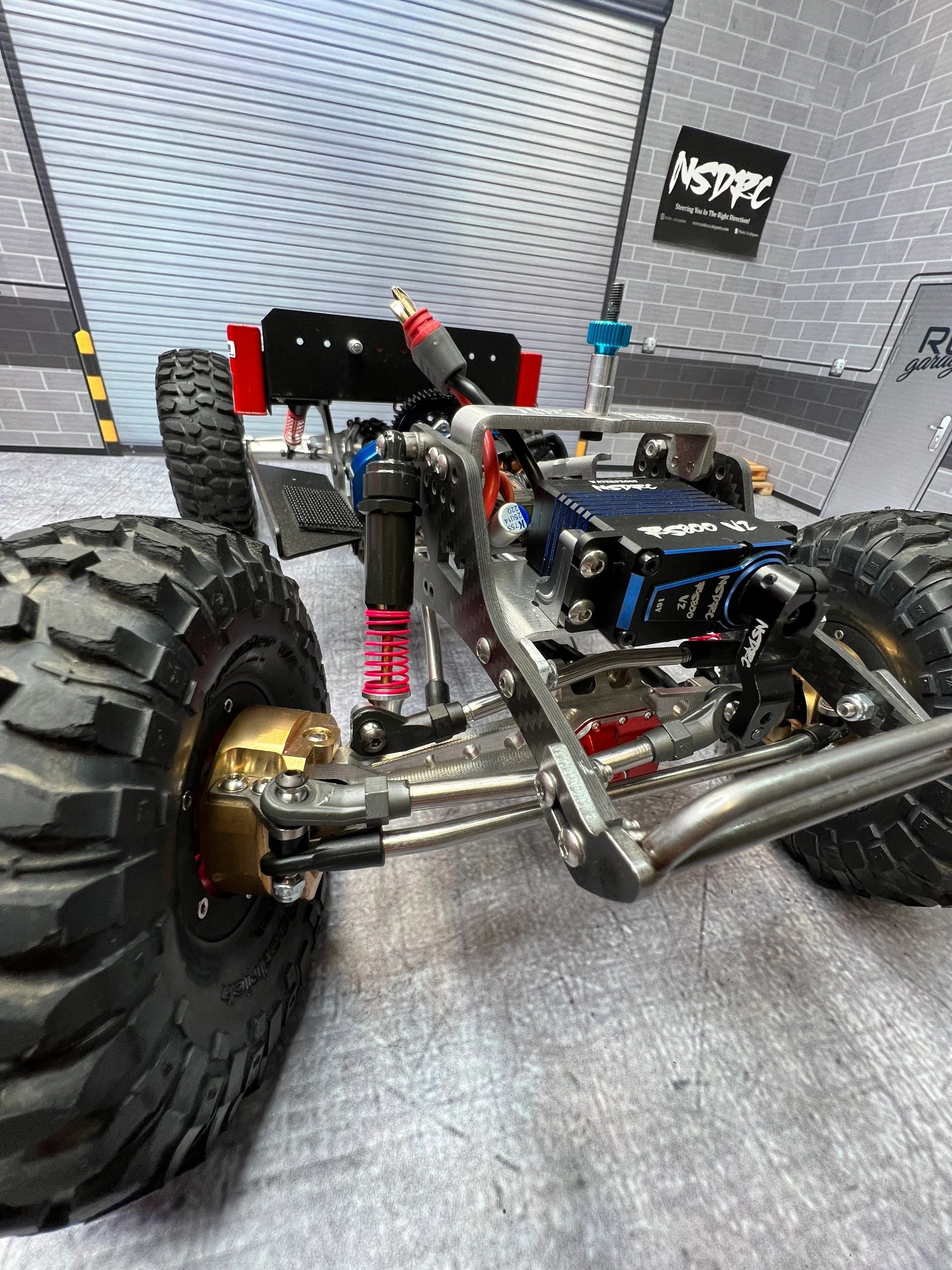

LDS MOUNT

PLEASE WATCH THE VIDEO FOR INSTALLATION INSTRUCTIONS

• LAY DOWN SERVO MOUNT IS CONSTRUCTED OF 13G FORMED ALUMINUM
• PAIRED WITH A SET OF SERVO MOUNTS

DIMENSIONS:

• MOUNT IS 2.8" (71mm) WIDE +-.02" (.5mm)
• MOUNTING HOLES ARE .455" (11.5mm) CENTER TO CENTER
• MOUNTING HOLES FOR BATTERY TRAY: .50" CENTER TO CENTER
• HARDWARE SUPPLIED TO MOUNT SERVO AND SERVO MOUNTS
• HARDWARE TO MOUNT ONTO THE CHASSIS WILL BE REQUIRED
